Diaschub

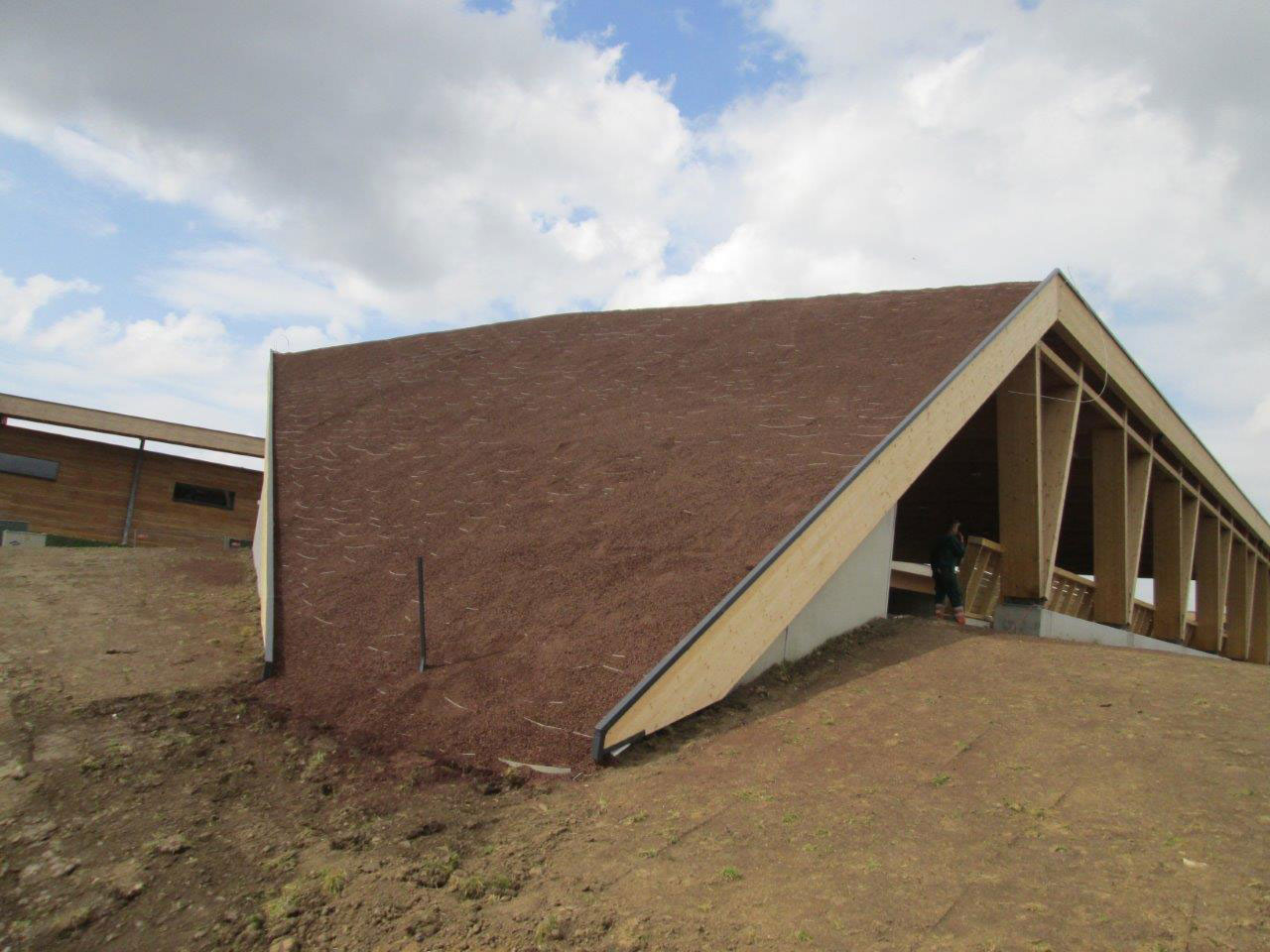

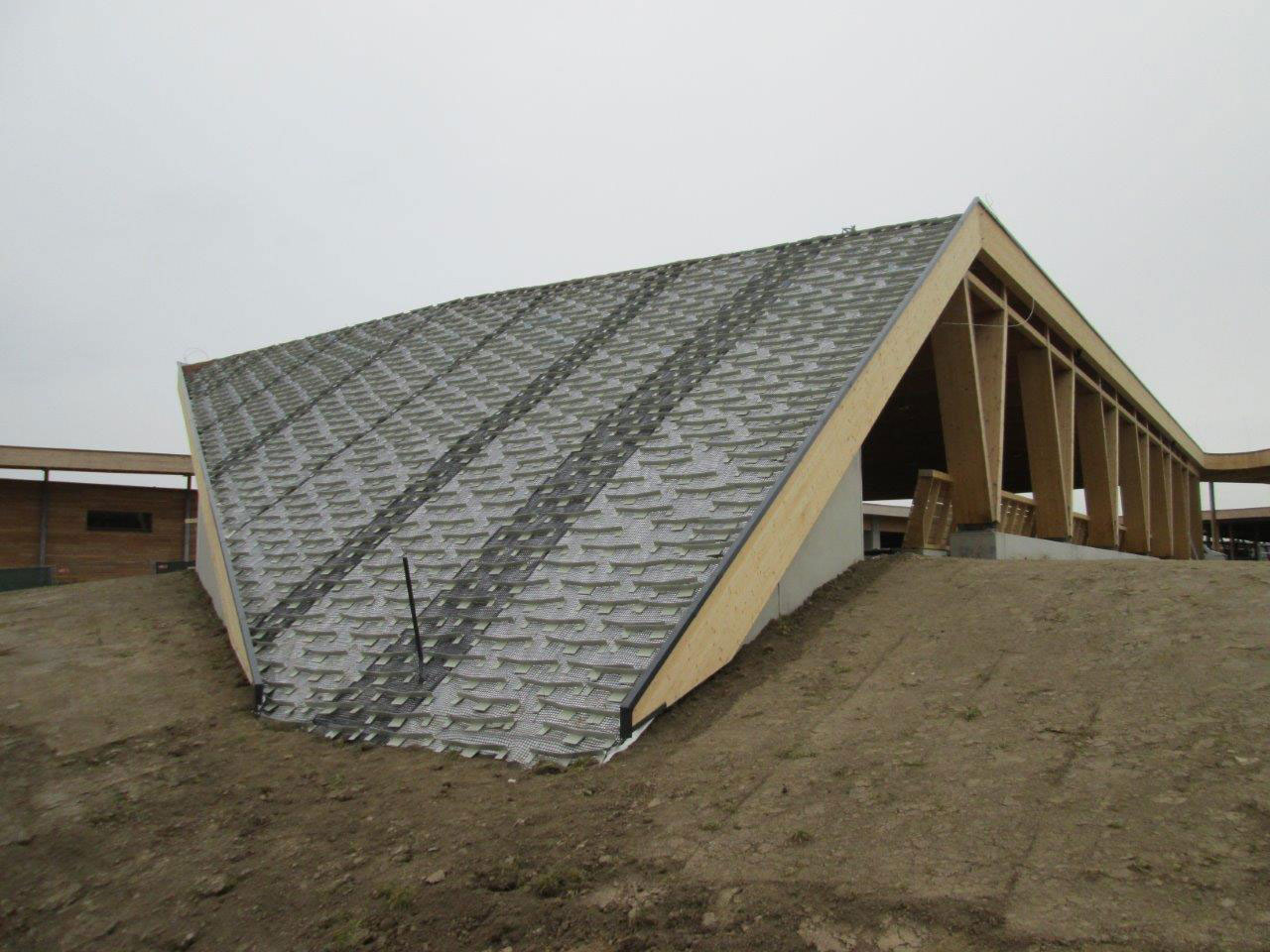

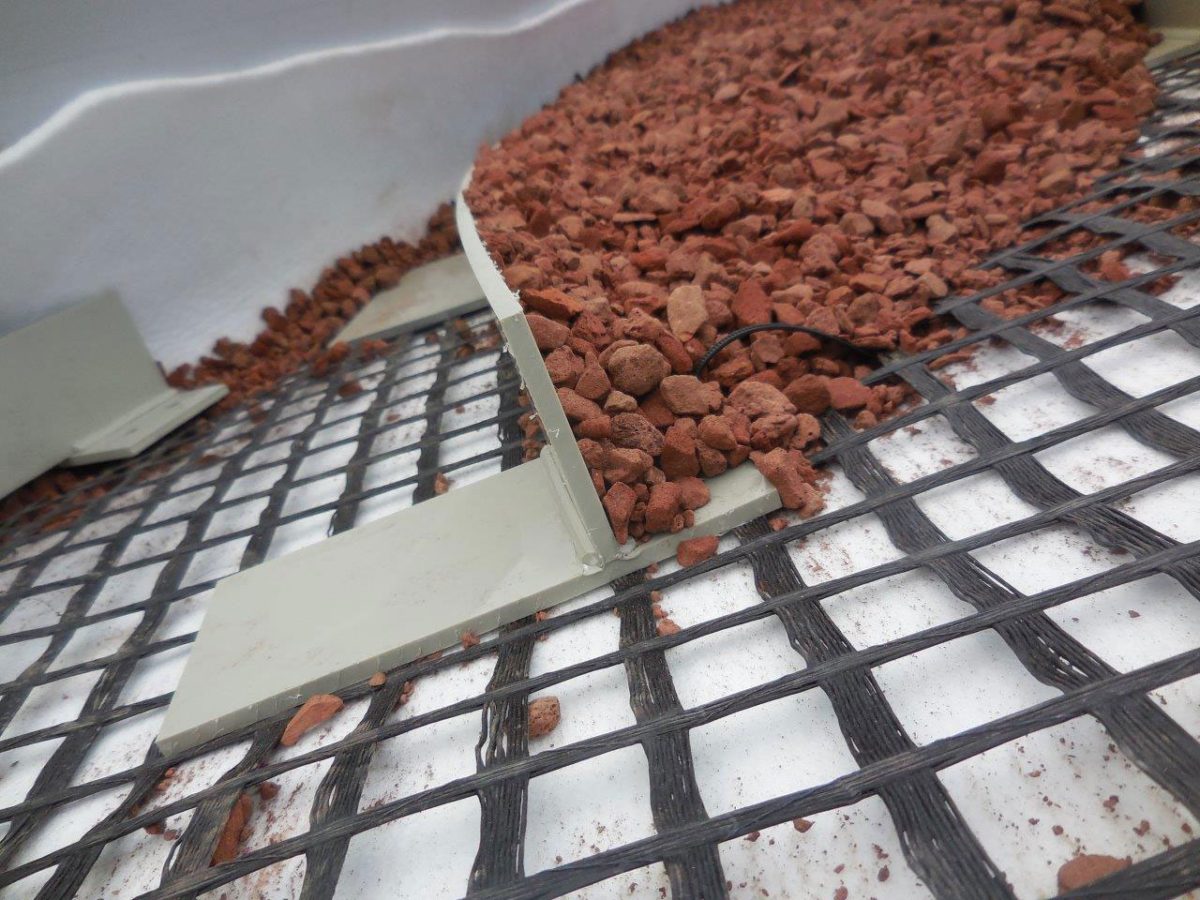

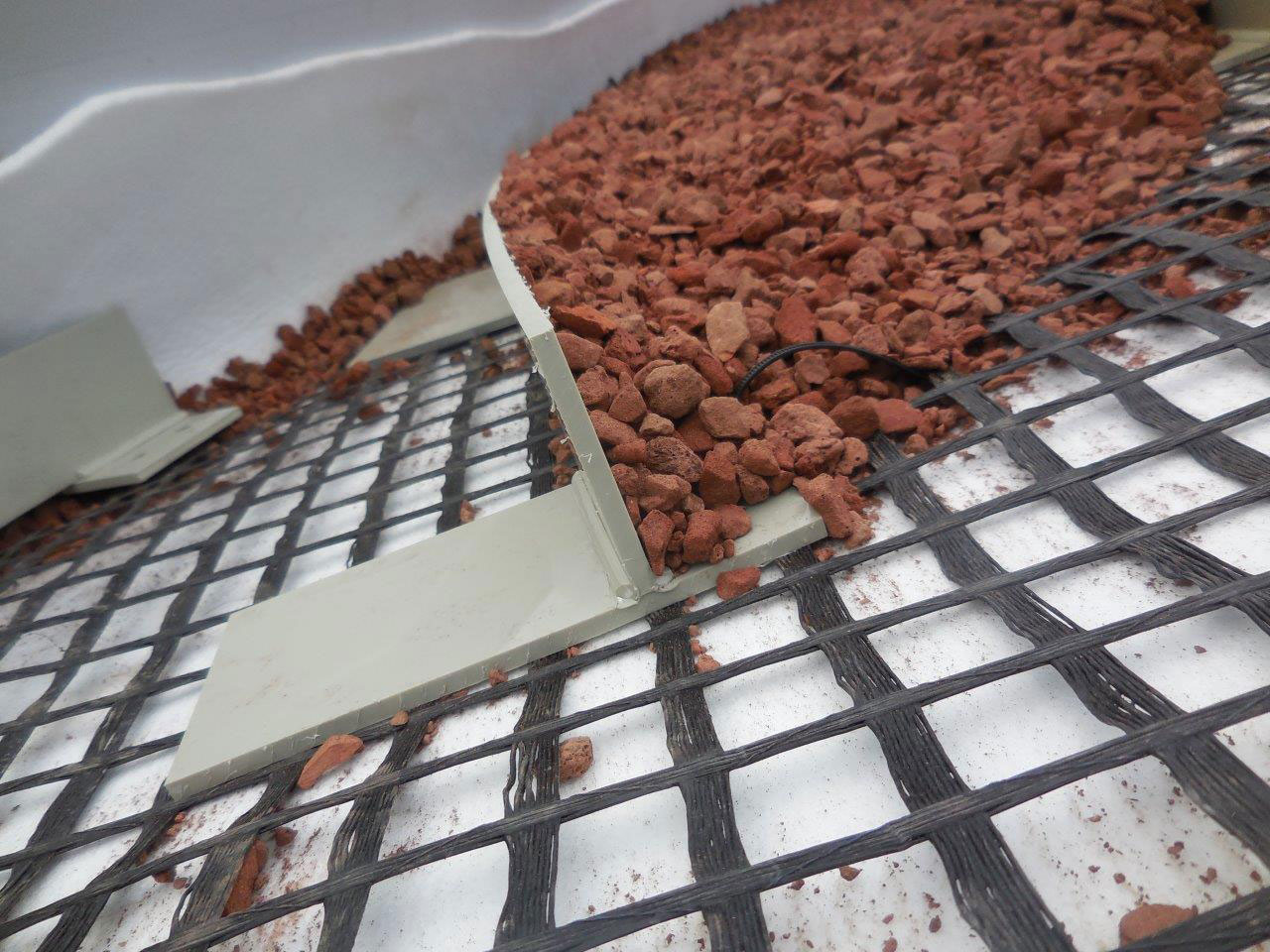

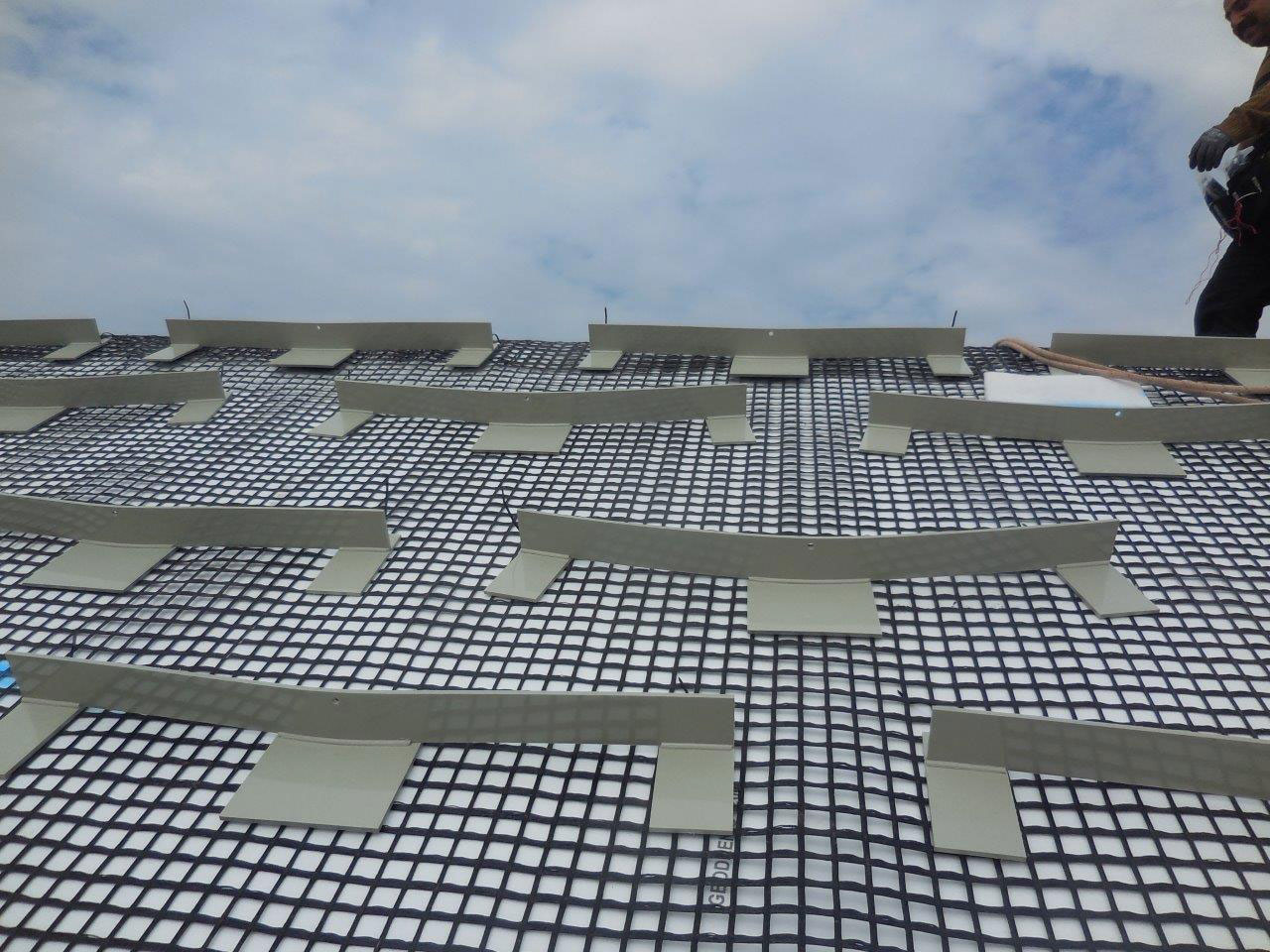

The DiaSchub system is suitable for holding the plant substrate in planted roofs with a gradient of 20 to 45 degrees. DiaSchub’s special units are lined up on a grid, with notches to attach the sedum mat.
Indicative section
Technical leaflet
Specifications
| Height (mm) | 65 |
| Length (mm) | 723 |
| Colour | RAL 7032 |
| Material | Polypropylene |
| Distance between the DiaSchub elements with a slope of max. 20ο(cm) | 100 |
| Distance between the DiaSchub elements with a slope of 21o-25ο(cm) | 50 |
| Distance between the DiaSchub elements with a slope of κλίση 26o-35ο(cm) | 33 |
| Distance between the DiaSchub elements with a slope of 36o-45ο(cm) | 25 |
| Material requirement with a slope of 15o-20ο (pcs/m2) | 1.4 |
| Material requirement with a slope of 21o-25ο (pcs/m2) | 2.8 |
| Material requirement with a slope of 26o-35ο (pcs/m2) | 4.2 |
| Material requirement with a slope of 36o-45ο (pcs/m2) | 5.6 |
